MoveUVN

Toolbar	Menu
Point Edit	Transform Move UVN Window Panels > MoveUVN

Toolbar

Transform

Move UVN

Window

Panels > MoveUVN

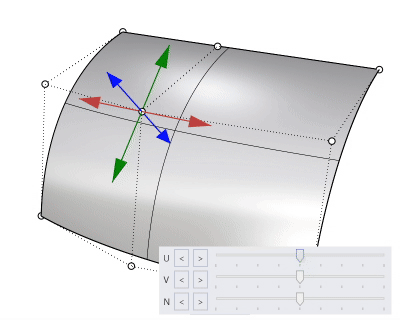

The MoveUVN command moves selected curve or surface control points along the u, v, and normal directions, or along control polygons.

Move UVN panel

U/V/N

Click an arrow button or drag a slider to move a control point in u, v, or normal directions.

Scale

Sets the scale for the arrow buttons and sliders. A value of 10 moves a control point 10 model units when you click an arrow button or drag a slider to the end.

UV Move mode

Along tangent

A surface has edit points that cannot be turned on. Every control point of a surface has an associated edit point. The Along Tangent mode moves a control point in the direction tangent to the UV isocurves or in the normal direction of the surface at the associated edit point.

(b) represents the edit point associated with the control point (a). The arrows display the U, V and N directions when the control point (a) moves in the Along tangent mode.

It is similar to curve control points. In the curve case, U is the tangent direction and N is the curve normal at the associated edit point. V is perpendicular to U and N.

The curvature graph of a curve draws the hairs in the curve normal direction.

Along control polygon

The U and V sliders move control points along control polygon chords.

Along extensions

A control point is moved along the imaginary extensions of surrounding control polygons.

U Symmetry / V Symmetry

Makes it possible to edit two sides of a symmetrical surface at the same time. You must select all points to edit.

Smoothing U/V

Evens out the control point grid.

Widgets

Displays UVN axis arrows on selected control points. These arrows can be dragged with the mouse.

Falloff

Defines how moving strength fades out from the dragged widget (center) towards the far widget (boundary).

None

Moving strength is equal across all selected widgets.

Smooth

Moving strength fades out slowly near the center and the boundary but more quickly in the middle range.

Round

Moving strength fades out slowly near the center and more quickly toward the boundary.

Command-line options

Type the scriptable command, -MoveUVN, to script visibility of the Move UVN panel.

Show

Displays the Move UVN panel.

Hide

Closes the Move UVN panel.

Toggle

Changes visibility of the Move UVN panel.
