PrintDisplay

Toolbar Menu

Display
Drafting

View

Viewport title

Print Preview

The PrintDisplay command displays objects using their Print Color and Print Width properties.

This mode may cause slow display speed.

Options for Model Viewports

State

On/Off/Toggle

Turns print display on or off.

Color

Print

Objects display using their Print Color setting.

Display

Objects display using normal display settings.

Thickness

Defines a screen resolution to multiply object's Print Width.



Option for Layout Viewports

LayoutLinetypes

On - Linetype patterns in Detail views use Layout space distance. Linetype patterns in different Detail views and the Layout space display with the same scale.

Off - Linetype patterns in Detail views use Model space distance.



LayoutLinetypes = On

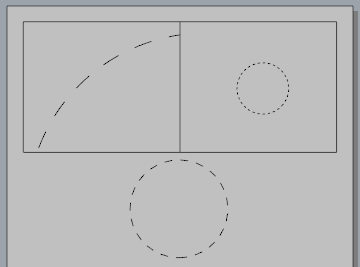

LayoutLinetypes = Off

See also

Use drafting tools
