EdgeSrf

Toolbar Menu

Surface Creation
Surface Sidebar

Surface

Edge Curves

 History enabled

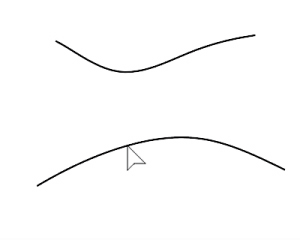

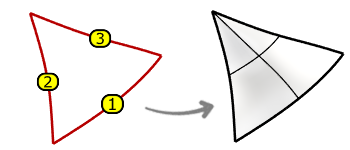

The EdgeSrf command creates a surface from two, three, or four selected curves.

Steps

Command-line options

SubCrv

Type subcrv to select part of a curve as input.

Note

  • You can use surface edges as the curves for a new surface.

  • For a surface from closed planar curves, the PlanarSrf command may be used if a trimmed surface is acceptable.

See also

Create surfaces
