EdgeSrf

Toolbar Menu

Surface Creation
Surface Sidebar

Surface

Edge Curves

 History enabled

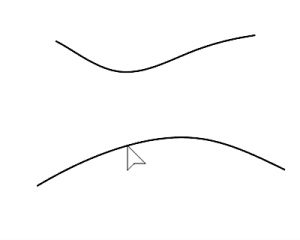

The EdgeSrf command creates a surface from two, three, or four selected curves. The edges of the created surface can precisely match the input curves.

  • Closed three-curve input creates a three-sided surface with a singularity point located opposite the first selected curve.

  • For closed planar input, the PlanarSrf command can be used if a trimmed surface is acceptable.

Steps

  • Select the 2, 3, or 4 curves, and press Enter.

    Surface edges can be selected as curves.
