PrintDisplay

Toolbar	Menu
Display Drafting	View Viewport title Print Preview

Toolbar

Toolbar: Display | Drafting

Display
Drafting

View

Viewport title

Print Preview

The PrintDisplay command displays objects using their Print Color and Print Width properties.

This mode may cause slow display speed.

Options for Model Viewports
State	On/Off/Toggle Turns print display on or off.
Color	Print Objects display using their Print Color setting. Display Objects display using normal display settings.
Thickness	Defines a screen resolution to multiply object's Print Width.

Options for Model Viewports

State

On/Off/Toggle

Turns print display on or off.

Color

Print

Objects display using their Print Color setting.

Display

Objects display using normal display settings.

Thickness

Defines a screen resolution to multiply object's Print Width.

Option for Layout Viewports
LayoutLinetypes	On - Linetype patterns in Detail views use Layout space distance. Linetype patterns in different Detail views and the Layout space display with the same scale. Off - Linetype patterns in Detail views use Model space distance.

Option for Layout Viewports

LayoutLinetypes

On - Linetype patterns in Detail views use Layout space distance. Linetype patterns in different Detail views and the Layout space display with the same scale.

Off - Linetype patterns in Detail views use Model space distance.

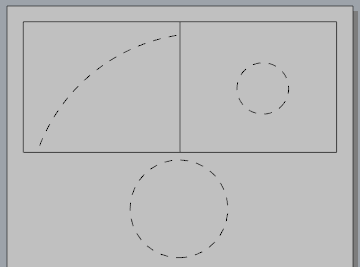

LayoutLinetypes = On

LayoutLinetypes = Off

PrintDisplay

On/Off/Toggle

Print

Display

See also
