PointGrid

Toolbar

Menu

Toolbar: Point

Not on menus.

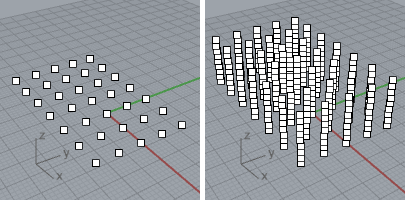

The PointGrid command draws a rectangular grid of point objects or a 3‑D matrix of points.

Steps

Draw a defining base rectangle.
See the Rectangle command for detailed option descriptions.
A point cloud object is created with points placed in a rectangular array.

Command-line options
XPointCount	The number of points in the x direction.
YPointCount	The number of points in the y direction.
ZPointCount	The number of points in the z direction.

The PointGrid command draws a rectangular grid of point objects.

Steps

Draw a defining rectangle for the grid.
See the Rectangle command for detailed option descriptions.
A point cloud object is created with points placed in a rectangular array.

Command-line options
XPointCount	The number of points in the x direction.
YPointCount	The number of points in the y direction.

See also

Point

Draw a single point object.
